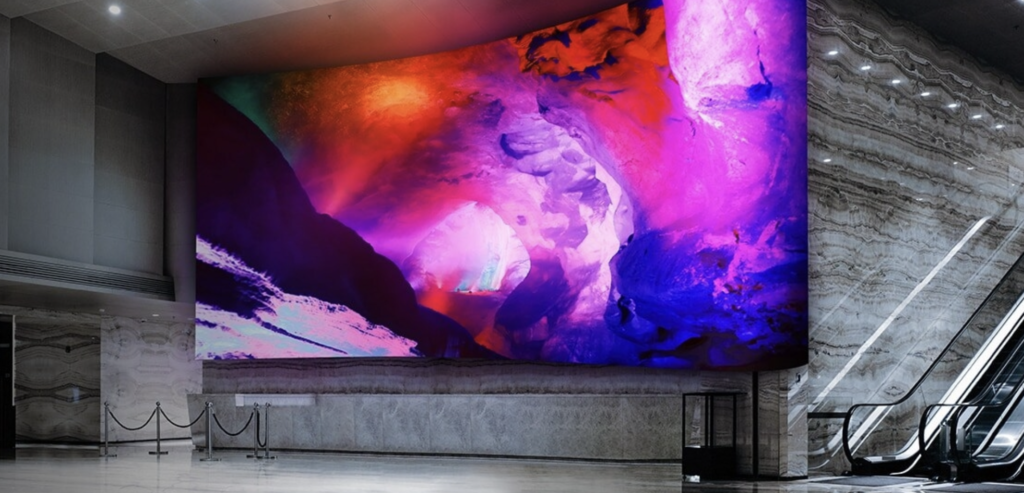

Active LED Indoor Series: The Ready-to-Use Video Wall
Creativity meets simplicity. Designed for the global LED display market with a ‘Ready-to-use’ concept. Features convenient maintenance, simple design, and excellent performance for any indoor environment.
Features
Micro LED Technology
Pixel perfect, bezel-free immersive experience
Flexible Splicing
Customizable screen sizes
Front & Rear Maintenance
Quick installation and service
High Refresh Rate
Up to 3840Hz for flicker-free visuals
| Model P0.88 (Micro LED) | |
|---|---|
| Pixel Pitch | 0.88 mm |
| LED Type | Micro LED (Pixel Perfect) |
| Cabinet Size | 600 x 337.5 x 39 mm |
| Cabinet Resolution | 640 x 360 pixels |
| Pixel Density | 1,658,800 pixels/m² |
| Brightness | 800 nits |
| Contrast Ratio | 10,000:1 |
| Refresh Rate | 3840 Hz |
| Service Access | Front Service |
| Power Consumption | ≤134 W/m² (Typical) |
| Model P1.2 Specifications | |
|---|---|
| Pixel Pitch | 1.25 mm |
| LED Type | Black SMD1010 |
| Panel Dimensions | 640 x 480 x 60 mm |
| Panel Resolution | 512 x 384 pixels |
| Brightness | 600 nits |
| Refresh Rate | 1920-3840 Hz |
| Viewing Angle | 140° (H) / 140° (V) |
| Maintenance | Fully Front / Rear |
| IP Rating | IP40 (Front) / IP21 (Rear) |
| Model P1.5 Specifications | |
|---|---|
| Pixel Pitch | 1.53 mm |
| LED Type | Black SMD1212 |
| Panel Dimensions | 640 x 480 x 60 mm |
| Panel Resolution | 416 x 312 pixels |
| Brightness | 700 nits |
| Refresh Rate | 1920-3840 Hz |
| Viewing Angle | 140° (H) / 140° (V) |
| Maintenance | Fully Front / Rear |
| IP Rating | IP40 (Front) / IP21 (Rear) |
| Model P1.9 Specifications | |
|---|---|
| Pixel Pitch | 1.83 mm |
| LED Type | Black SMD1515 |
| Panel Dimensions | 640 x 480 x 60 mm |
| Panel Resolution | 348 x 261 pixels |
| Brightness | 700 nits |
| Refresh Rate | 1920-3840 Hz |
| Viewing Angle | 160° (H) / 160° (V) |
| Maintenance | Fully Front / Rear |
| IP Rating | IP40 (Front) / IP21 (Rear) |
| Model P2.5 Specifications | |
|---|---|
| Pixel Pitch | 2.5 mm |
| LED Type | Black SMD2121 |
| Panel Dimensions | 640 x 480 x 60 mm |
| Panel Resolution | 256 x 192 pixels |
| Brightness | 700 nits |
| Refresh Rate | 1920-3840 Hz |
| Viewing Angle | 140° (H) / 140° (V) |
| Maintenance | Fully Front / Rear |
| IP Rating | IP40 (Front) / IP21 (Rear) |
| Model P3 Specifications | |
|---|---|
| Pixel Pitch | 3.07 mm |
| LED Type | Black SMD2121 |
| Panel Dimensions | 640 x 480 x 60 mm |
| Panel Resolution | 208 x 156 pixels |
| Brightness | 700 nits |
| Refresh Rate | 1920-3840 Hz |
| Viewing Angle | 140° (H) / 140° (V) |
| Maintenance | Fully Front / Rear |
| IP Rating | IP40 (Front) / IP21 (Rear) |
