Active LED Outdoor: Transform Your Skyline
Spectacular panoramic views with 100% rainstorm resistance and high-brightness performance for any weather.
All-Weather Durability
Engineered for the outdoors. Our IP65-rated panels are 100% rainstorm resistant and feature high-brightness capability (up to 7500 nits), ensuring your content remains vivid and clear even in direct sunlight.

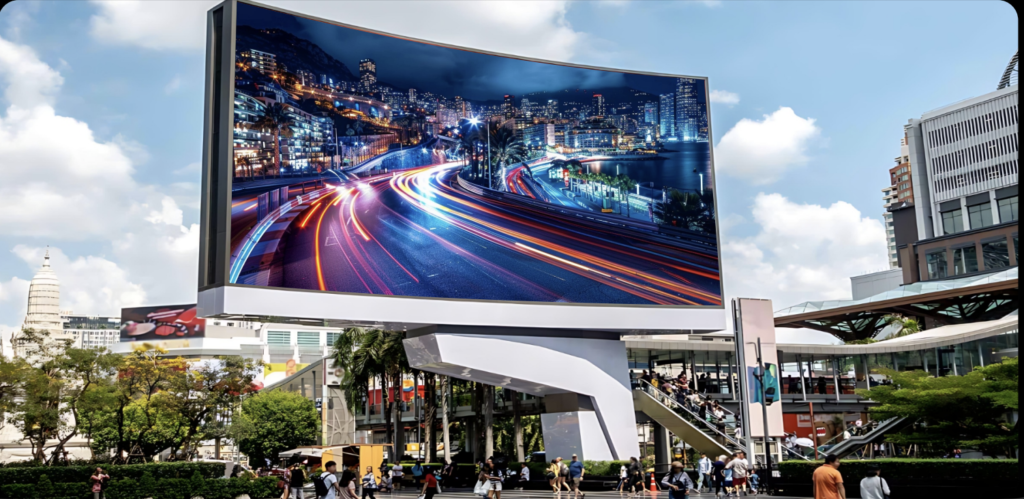

Panoramic Visual Experiences
Create immersive landmarks. With flexible splicing and wide viewing angles (160°), our outdoor walls transform standard building façades into dynamic digital canvases.
Technical Specifications
| Model P3 Outdoor | |
|---|---|
| Pixel Pitch | 3mm |
| Module Resolution | 192 x 192 dots |
| Brightness | 1000 nits |
| Refresh Rate | >1000 Hz |
| IP Rating | IP65 (Rainstorm Resistant) |
| Cabinet Size | 576mm x 576mm |
| Viewing Angle | 160° / 160° |
| Model P3.9 Outdoor | |
|---|---|
| Pixel Pitch | 3.9mm |
| Module Resolution | 128 x 256 dots |
| Brightness | 1000 nits |
| Refresh Rate | >1000 Hz |
| IP Rating | IP65 (Rainstorm Resistant) |
| Cabinet Size | 500mm x 1000mm |
| Viewing Angle | 160° / 160° |
| Model P6 High Brightness | |
|---|---|
| Pixel Pitch | 6mm |
| Module Resolution | 32 x 32 dots |
| Brightness | 6500 nits (Daylight Visible) |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65 |
| Cabinet Size | 768mm x 768mm |
| Viewing Angle | 160° / 160° |
| Model P8 Ultra Bright | |
|---|---|
| Pixel Pitch | 8mm |
| Module Resolution | 160 x 120 pixels |
| Brightness | 6000 - 7500 nits |
| Refresh Rate | ≥15000 Hz |
| IP Rating | IP65 |
| Panel Dimensions | 1280mm x 960mm |
| Viewing Angle | 160° H / 75° V |
| Model P10 Ultra Bright | |
|---|---|
| Pixel Pitch | 10mm |
| Module Resolution | 128 x 96 pixels |
| Brightness | 6000 - 7500 nits |
| Refresh Rate | ≥15000 Hz |
| IP Rating | IP65 |
| Panel Dimensions | 1280mm x 960mm |
| Viewing Angle | 160° H / 80° V |
